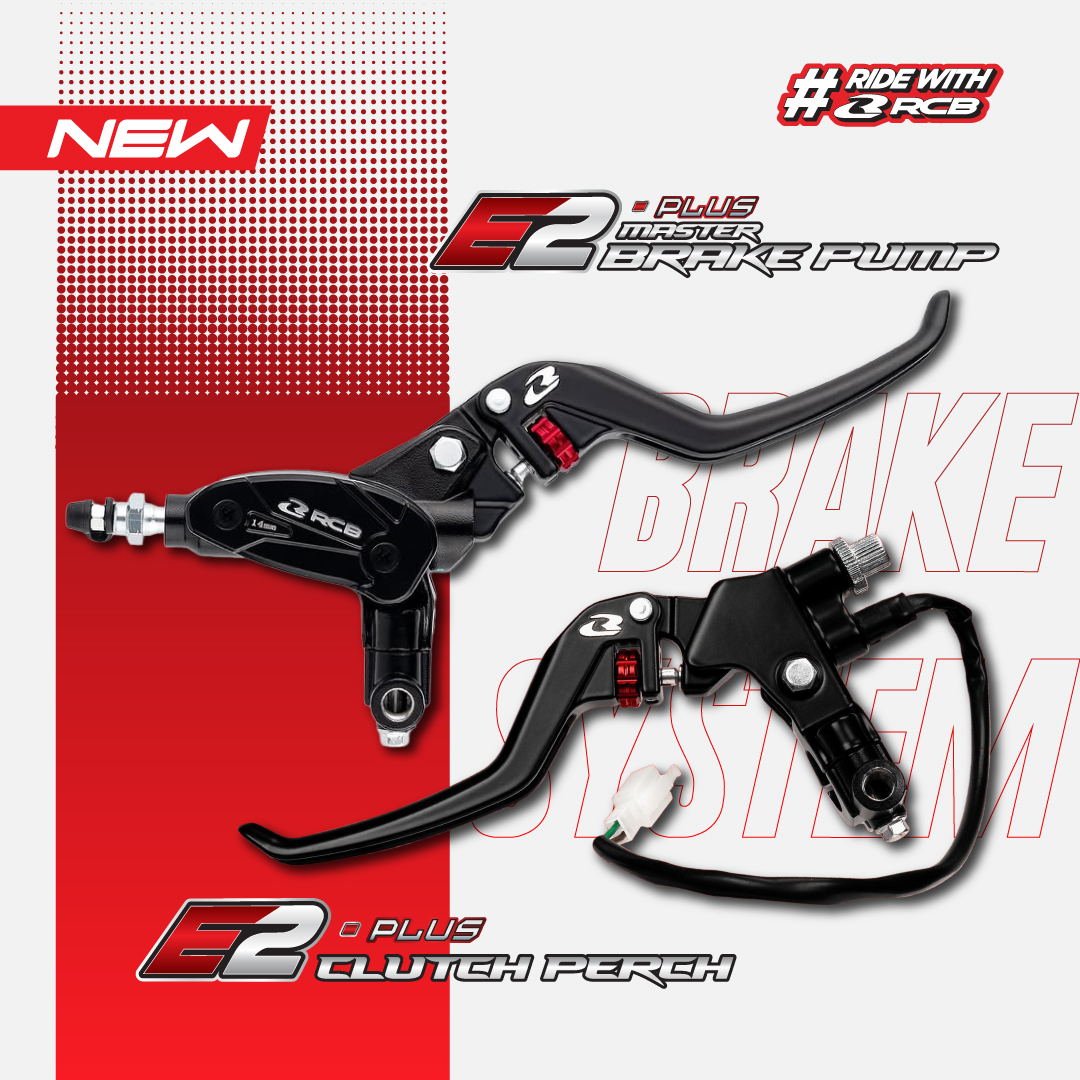

Upgrade your motorcycle’s entire handlebar cockpit configuration with the ultimate control upgrade. The RCB E2 Plus Controls Combo pairs the highly responsive 14mm E2 Plus Right-Hand Master Brake Pump with the matching Universal Cable Clutch Perch (E2/E3/E4 Plus compatible).
Designed for riders who refuse to compromise on ergonomics, this combo replaces mismatched factory levers with a symmetrical, high-performance setup. Featuring the newly upgraded adjustable lever system, the E2 Plus series allows you to fine-tune your reach for personalized comfort, reducing hand fatigue during long city commutes or spirited track days.
Key Features

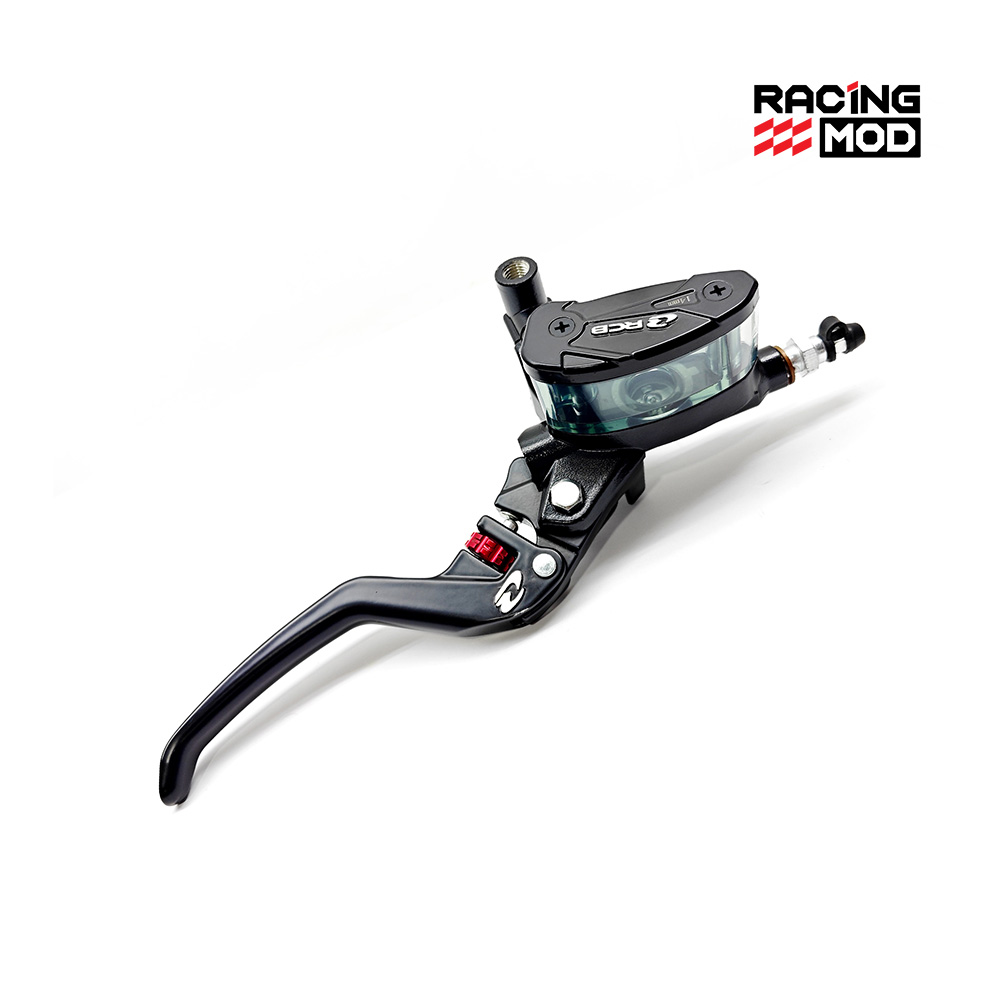

1. RCB E2 Plus 14mm Master Brake Pump (Right Hand)
-
14mm Precision Bore Cylinder: Displaces fluid more efficiently than smaller factory units (typically 11mm or 12.7mm). This provides a vastly firmer lever feel, razor-sharp stopping power, and shorter braking distances with less finger pressure.
-
On-the-Fly Reach Adjustment: The standout feature of the Plus series is the dial-adjustable lever. Customize the physical distance between the handlebar grip and the lever to match your hand size perfectly.
-
Integrated Oil Reservoir: Features a clean, low-profile built-in smoke reservoir that keeps your handlebars uncluttered while allowing easy monitoring of brake fluid levels.
-
Premium Cast Aluminum Build: Finished with a striking diamond-cut RCB logo, providing a high-end factory look alongside robust impact resistance.
2. RCB Matching Cable Clutch Perch Universal, Black (Left Hand)
-
Symmetrical Styling: Specially sculpted to perfectly match the design lines, thickness, and black anodized finish of the E2 Plus brake side, giving your bike a balanced, unified look.
-
Universal Cable Fitment: Compatible with a massive range of cable-actuated clutches. Features a smooth, low-friction leverage ratio that softens heavy clutch pulls for effortless shifting.
-
Integrated Rear-View Mirror Mount: Includes a standard 10mm (M10) mirror mounting thread so you can cleanly retain your stock side mirrors without extra adapters.
-
Integrated Mechanical Switch: Built-in wiring connections ensure your safety start-in-gear sensors continue to function flawlessly.
Technical Specifications
| Component | Feature | Specification |
| E2 Plus Brake Pump | Piston Bore | 14mm |
| Lever Type | Fully Adjustable (Reach) | |
| Orientation | Right Hand (RH) | |
| Fluid Compatibility | DOT 3 / DOT 4 | |
| Clutch Perch | Actuation Type | Cable-Driven |
| Compatibility | Universal (RCB E2 / E3 / E4 Plus Series Design Match) | |
| Orientation | Left Hand (LH) | |
| Common Specs | Handlebar Diameter | 22mm (Standard 7/8″ Bars) |
| Mirror Mounts | 10mm (M10 Standard Thread) | |
| Color | Satin Black / Matte Accents |
Compatibility Guide
The 14mm bore size and universal cable clutch layout make this combo an exceptional performance upgrade for small-to-mid capacity single-disc motorcycles up to 300cc, including:
-
Yamaha: R15 V3/V4/M, MT-15, FZ-S, XSR155, Y15ZR, Y16ZR
-
Suzuki: Gixxer 155, Gixxer SF 155, Raider R150
-
Honda: CB150R Hornet, CBR150R, RS150R
Installation Note: This kit is fully plug-and-play for standard 22mm handlebars. For safety, the hydraulic brake system must be completely bled after installation to eliminate trapped air bubbles and achieve a firm, reliable brake bite point.
