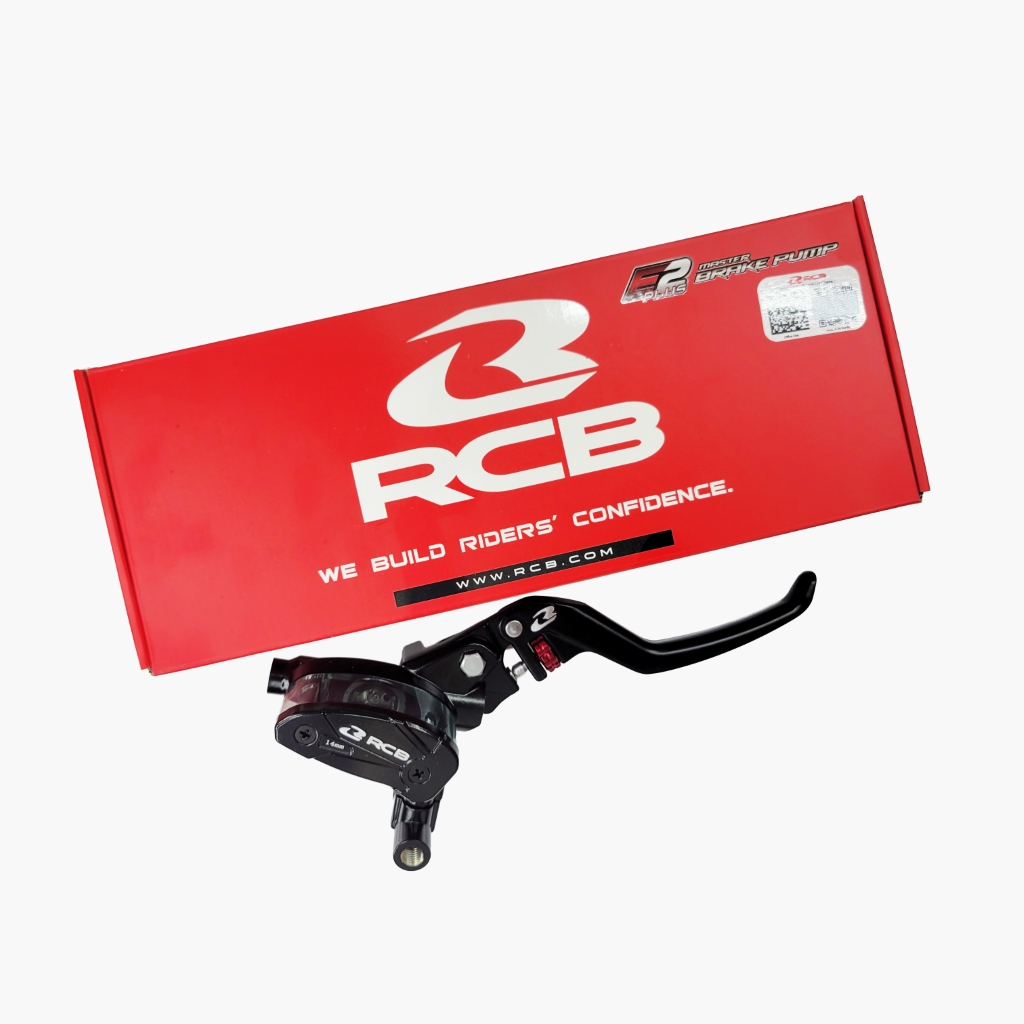

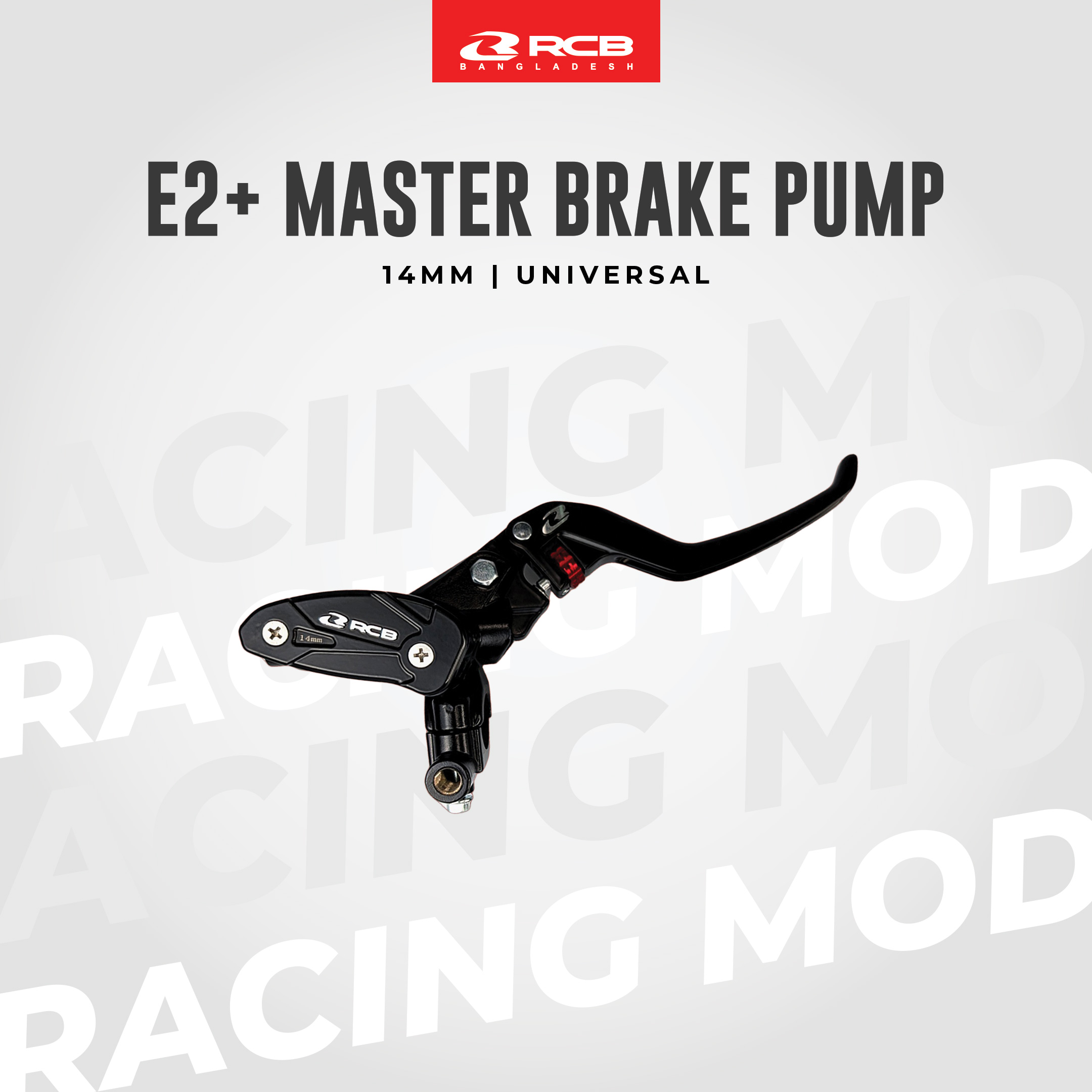

RCB E2 Plus (E2+) Master Brake Pump with Adjustable Lever is an upgraded, street-performance control unit designed to bring precise hydraulic modulation and custom ergonomics to your everyday ride. Improving on the standard RCB E2 series, the E2+ merges a space-saving axial master cylinder housing with a premium, multi-position adjustable lever blade.
Finished in a highly durable anodized coating, this assembly is the perfect solution for riders looking to eliminate the spongy, vague feel of factory components on underbones, scooters, and lightweight sportbikes.
Key Features
-
Integrated Multi-Position Span Adjuster: Equipped with an ergonomic dial adjuster mechanism on the face of the lever handle. This allows you to fine-tune the initial distance between the lever blade and your handlebar grip down to the exact millimeter, catering perfectly to varying hand sizes.
-
14mm Mirror-Bored Cylinder Piston: Outfitted with a precision-ground 14mm internal piston bore. This size moves the optimal volume of hydraulic fluid required to drive single-piston, dual-piston (like the RCB S3 Series), or floating caliper systems without creating a stiff, wooden lever feel.
-
Anti-Snapping Folding Hinge Joint: Built with an articulating structural pivot that allows the lever blade to flex upward in the event of a stationary drop or tip-over. This drastically minimizes the risk of snapping the lever blade off entirely, leaving your controls operational.
-
Compact Integrated Fluid Reservoir: Features a clean, top-mounted integrated fluid tank. This self-contained layout eliminates external mounting brackets and loose feed hoses, keeping your handlebar cockpit compact while offering a clear sight window for instant fluid level checks.
-
Premium Cast & CNC-Machined Alloy: The master housing is cast from high-strength aluminum alloy and CNC-milled at key stress points to reduce body flex and mechanical play under heavy emergency braking loads.
Technical Specifications
| Feature | RCB E2 Plus (E2+) Master Pump Details |
| Product Line Family | E2+ Enhanced Adjustable Street Series |
| Mechanical Layout | Axial / Horizontal Hydraulic Piston Geometry |
| Piston Bore Diameter | 14.0 mm |
| Lever Safety Style | Articulating Upward Folding Hinge |
| Fluid Feed System | Compact Integrated Reservoir Chamber |
| Fluid Feed Outlet Thread | Standard M10 x 1.25mm Thread Pitch |
| Handlebar Fitting Diameter | Standard 22.2mm (7/8″) Clamp Mount |
| Mirror Thread Interface | Integrated M10 Mirror Mount Hole |
FAQs
Is this master cylinder compatible with my motorcycle?
Yes, this master cylinder offers universal fitment and works with most motorcycles, especially 150cc to 350cc bikes with hydraulic brake systems.
Do I have to buy RCB brake hose with this?
Most customers buy an RCB brake hose with the RCB E2+ master cylinder for better braking performance, but it is not mandatory.
What makes a 14mm master cylinder better?
A 14mm master cylinder provides balanced braking performance. It offers better control without making the brake too aggressive.
Is this master cylinder suitable for daily use?
Yes, it is ideal for daily riding and regular commuting. It improves safety and provides consistent braking performance.
Does this include a brake lever?
Yes, it comes with an adjustable brake lever for improved comfort and control.
Do I need professional installation?
Installation is simple, but professional installation is recommended for best performance and safety.
How do I verify the authenticity?
You can scan the authentication QR code included with the product to confirm it is genuine.
