S1 FL 30th Anniversary Special Edition
Get the Combo set for the ultimate brake system upgrade.

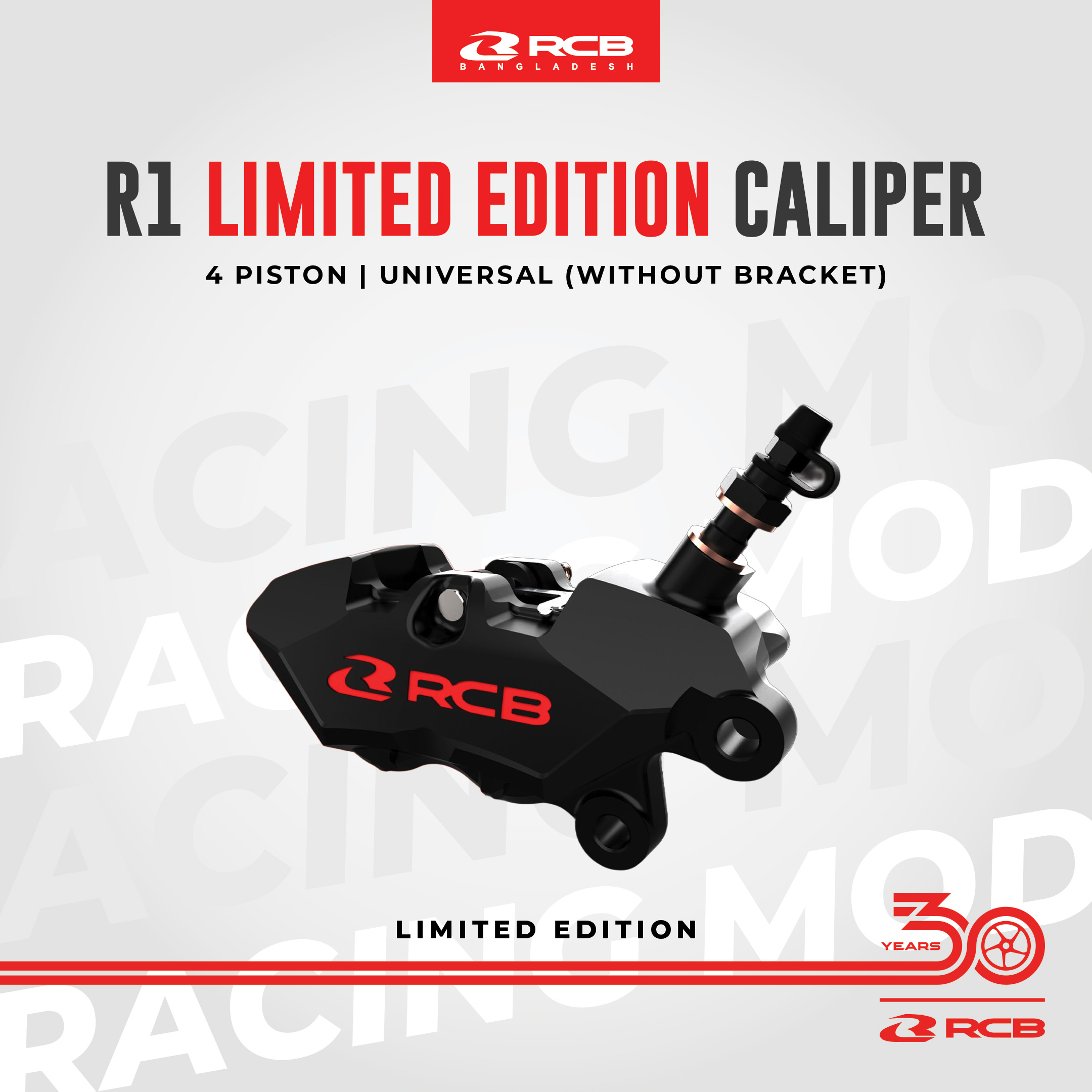

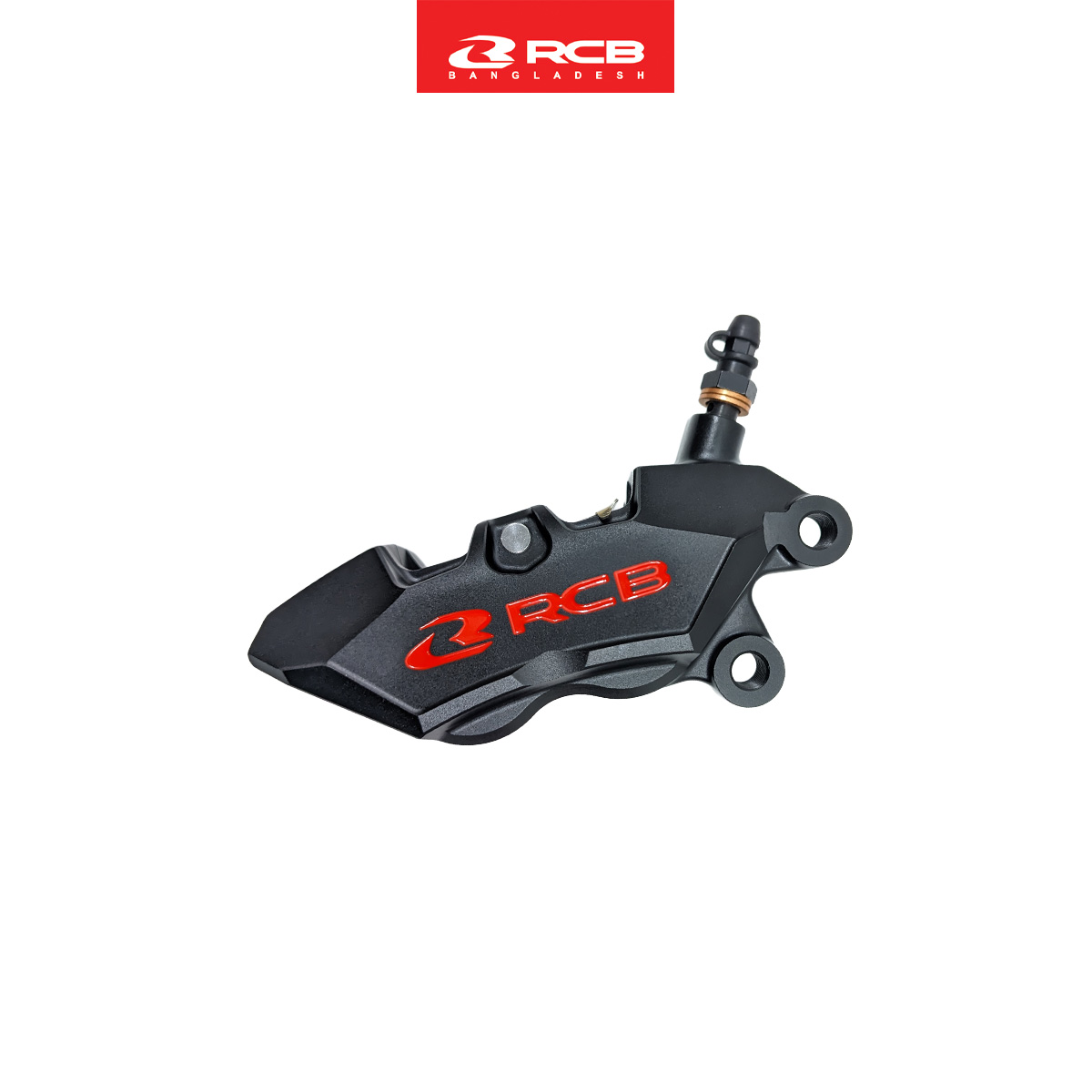

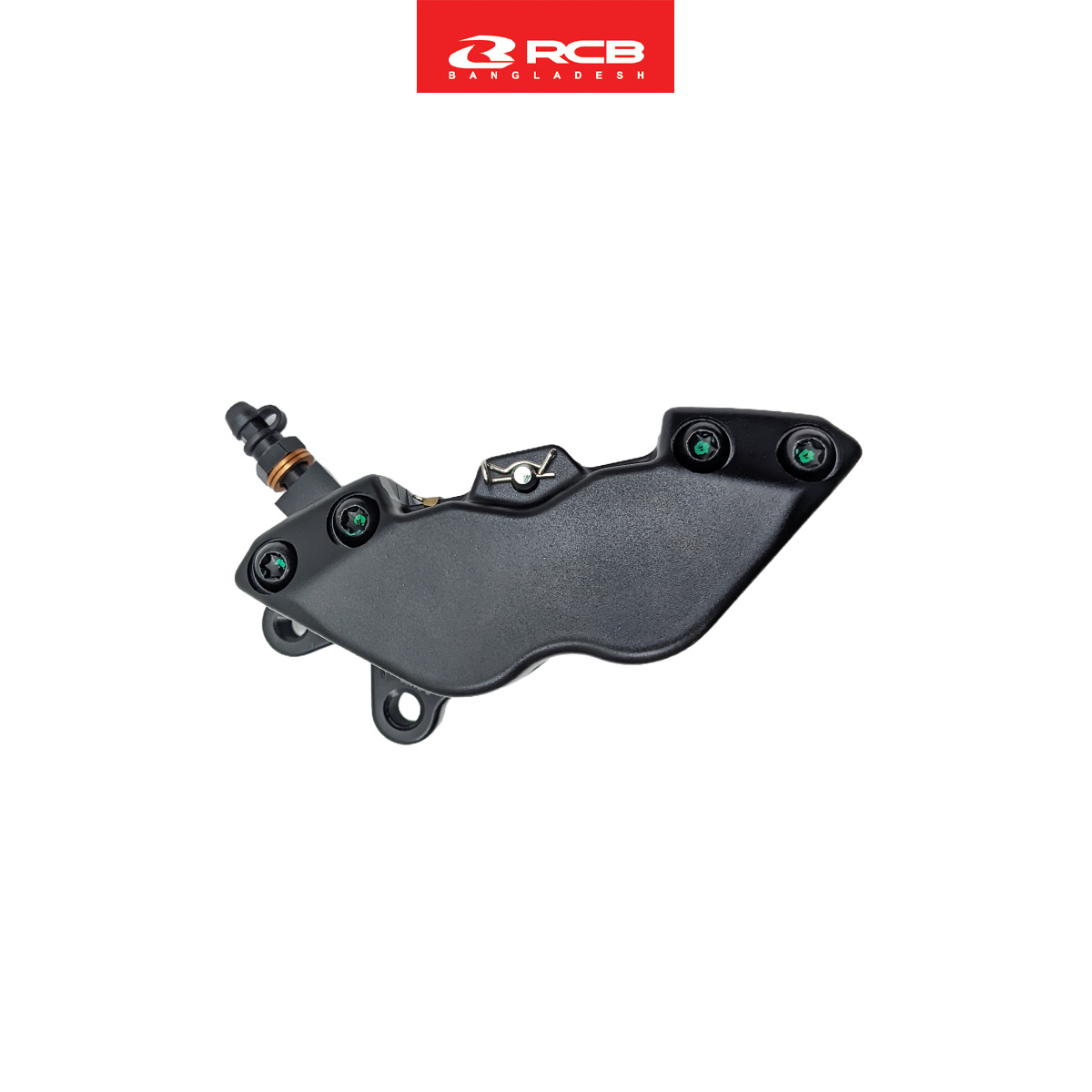

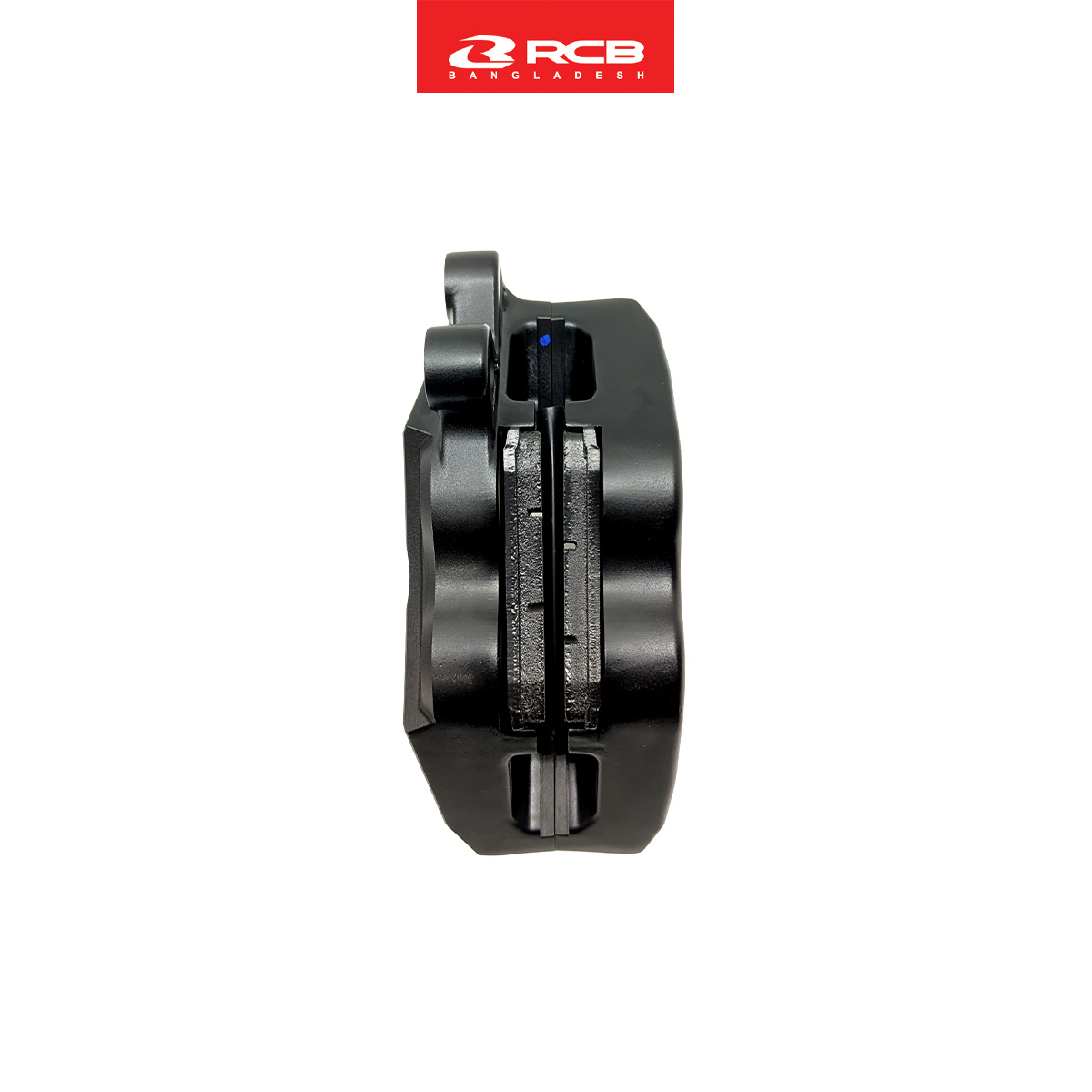

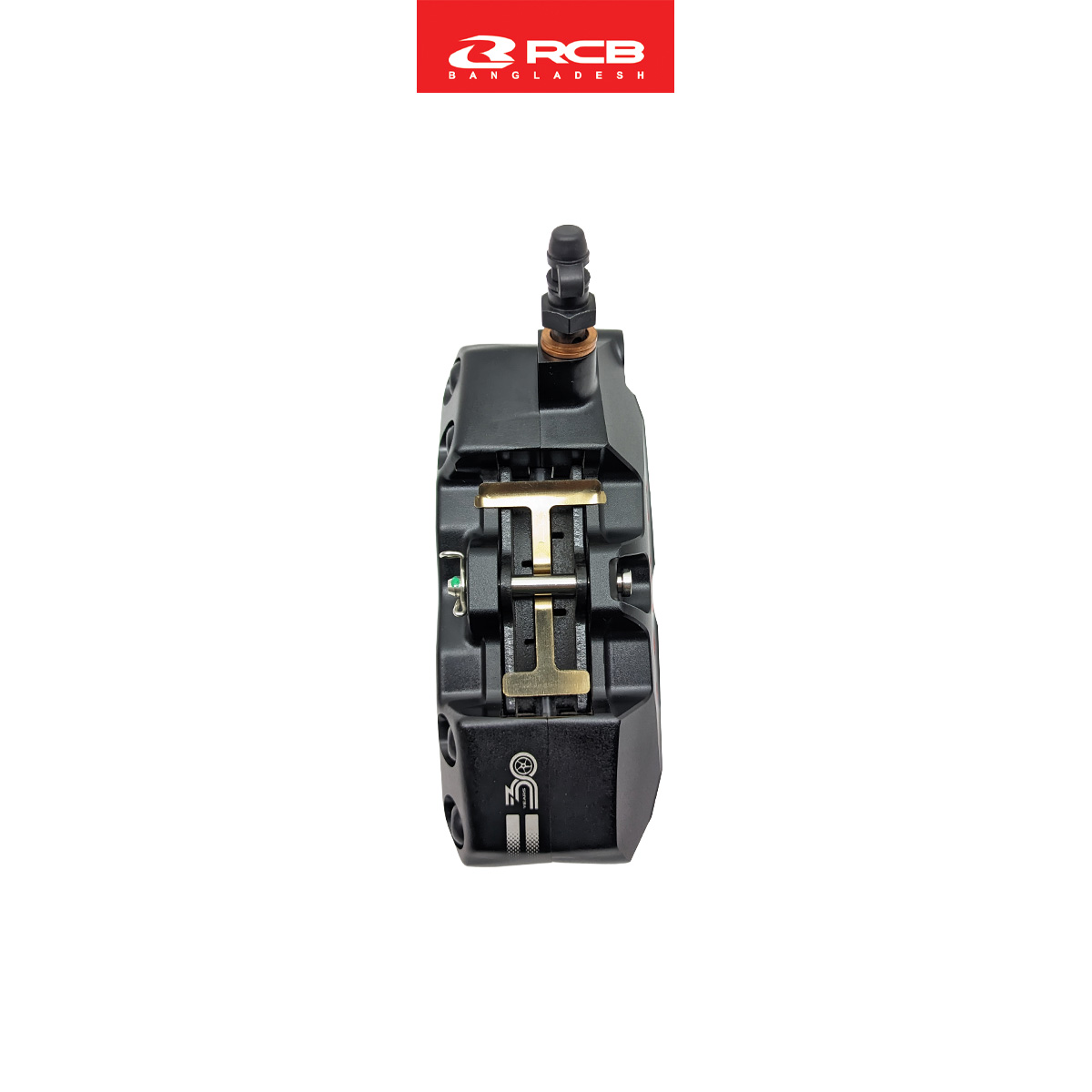

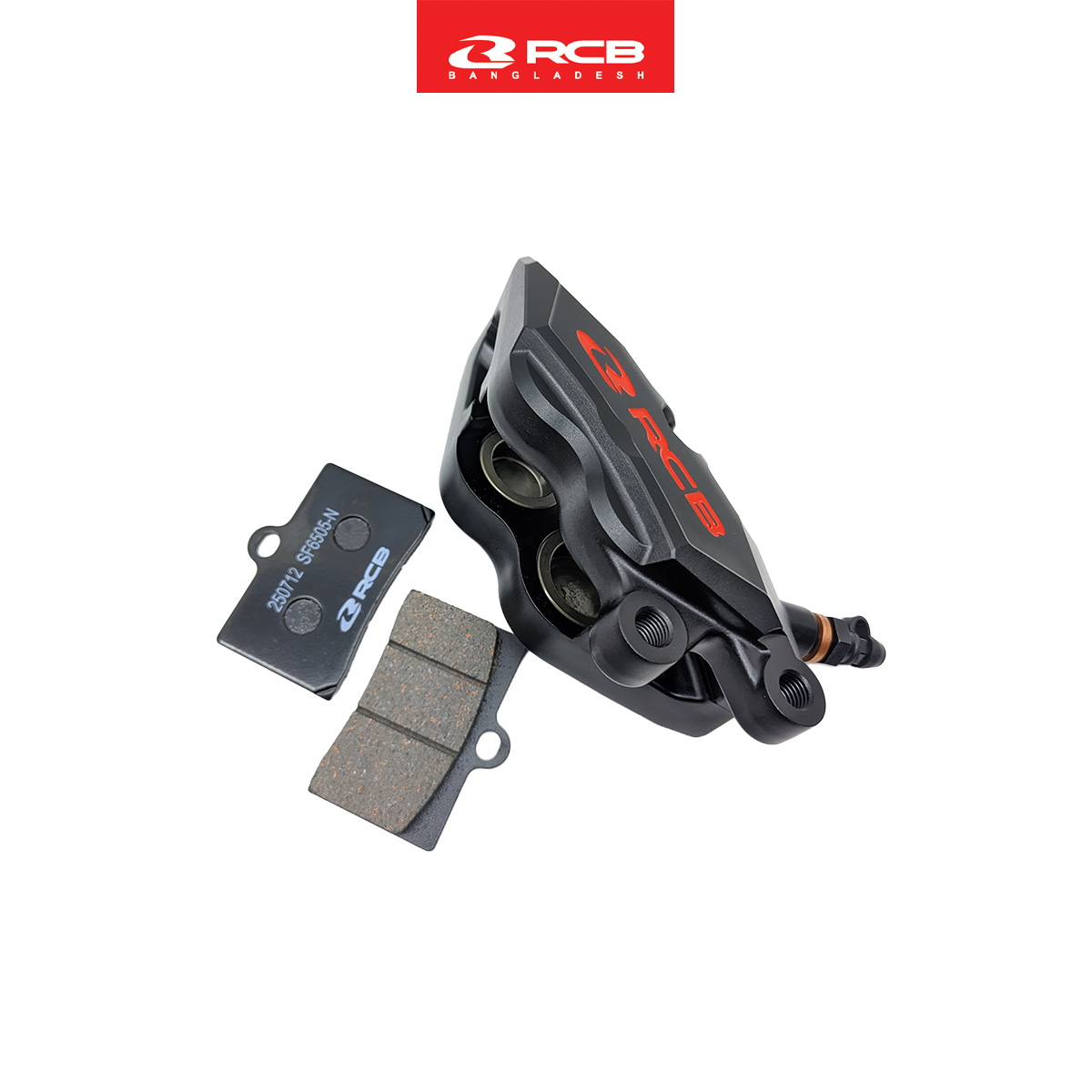

The RCB R1 4-Piston Caliper 30th Anniversary Limited Edition is the flagship of Racing Boy’s braking lineup. It is a high-performance, monoblock-style caliper designed to provide massive stopping power and superior heat management compared to standard 1-pot or 2-pot factory setups.
If you are upgrading your master pump to an E4+ or S1-FL, the R1 is the perfect “business end” to complete the system.
Key Features
- Limited edition CNC series celebrating RCB’s 30th anniversary. Premium finish with exclusive branding and design details
-
Forged Monoblock Body: Unlike cheaper calipers that are two pieces bolted together, the R1 is forged from a single piece of high-strength aluminum alloy. This eliminates “caliper flex” under heavy braking, ensuring all your lever force goes directly into the pads.
-
4-Piston Configuration: By using four pistons (two on each side), the R1 applies even pressure across the entire surface of the brake pad. This results in a much stronger “bite” and more consistent friction.
-
Anodized Heat Resistance: The finish isn’t just for show; the hard-anodized coating helps dissipate heat faster, preventing “brake fade” during aggressive riding or track days.
-
Teflon Seals: Equipped with high-quality seals that offer smoother piston movement and better resistance to corrosive brake fluids like DOT 4.
Performance Advantage
Moving from a stock caliper to the R1 4-Piston is a night-and-day difference:
-
Shorter Braking Distance: The increased surface area and hydraulic pressure significantly reduce the distance needed to stop.
-
Better Modulation: You get more “feel.” You can tell exactly how much grip you have left before the tire locks up.
-
Visual Impact: It is one of the most recognizable “big brake” upgrades in the aftermarket scene, giving the front end of the bike a racing-inspired look.
Installation Notes
-
Bracket Required: Since this is a universal high-performance caliper, you will need a model-specific caliper bracket (e.g., for NMAX, Sniper/LC150, R15) to align it correctly with your disc.
-
Master Pump Pairing: Because a 4-piston caliper requires more fluid to move, it is highly recommended to pair the R1 with a master pump that has at least a 14mm (like S1 FL 14mm/E2+/E3+) or, ideally, a 15mm-17mm (like E4+ or S1-FL) bore.
-
Braided Lines: To get the full benefit of the R1, use braided steel brake lines. Rubber lines may expand under the high pressure this caliper generates.
Are you planning to install this on a standard-size disc, or are you upgrading to an oversized (260mm/300mm) rotor as well?

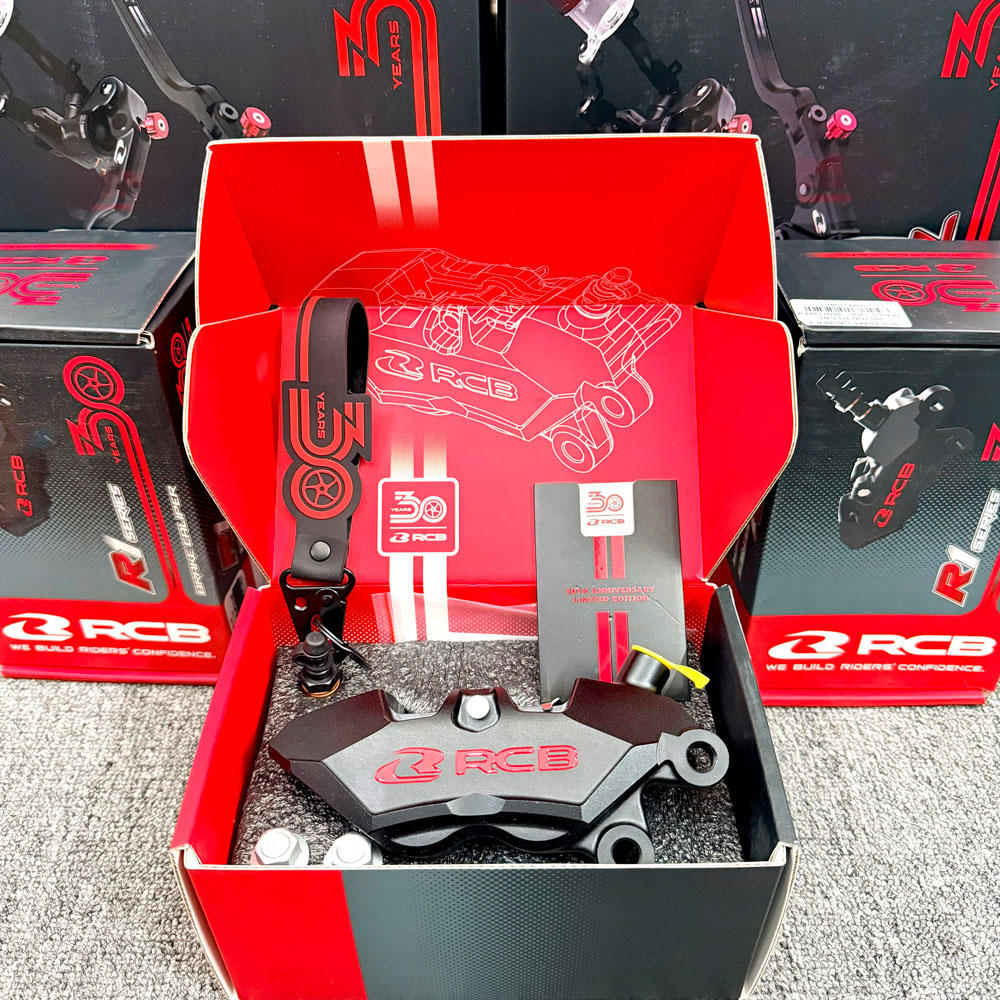

| Product Specifications | What’s in the Box? |
|---|---|
|
|
Racing Mod is the Official Flagship Store for RCB Bangladesh and Uma Racing Bangladesh.
All our products are 100% authentic and come with an official authentication QR code for verification.
Common Questions & Answers (FAQs)
Is this caliper compatible with my motorcycle?
Yes, it offers universal fitment and works with most motorcycles, especially 150cc to 350cc bikes.
What is special about the CNC version?
The CNC version offers higher precision, better durability, and improved performance compared to standard cast calipers.
What makes this 30th Anniversary edition unique?
It features exclusive design, premium finishing, and limited availability.
Does it improve braking performance significantly?
Yes, the 4-piston system provides stronger braking power and better control.
Is this suitable for daily use?
Yes, it works perfectly for daily riding as well as performance riding.
Do I need other upgrades for best performance?
For maximum performance, it is recommended to pair with an RCB master cylinder and brake hose.
How do I verify authenticity?
You can scan the authentication QR code included with the product.
