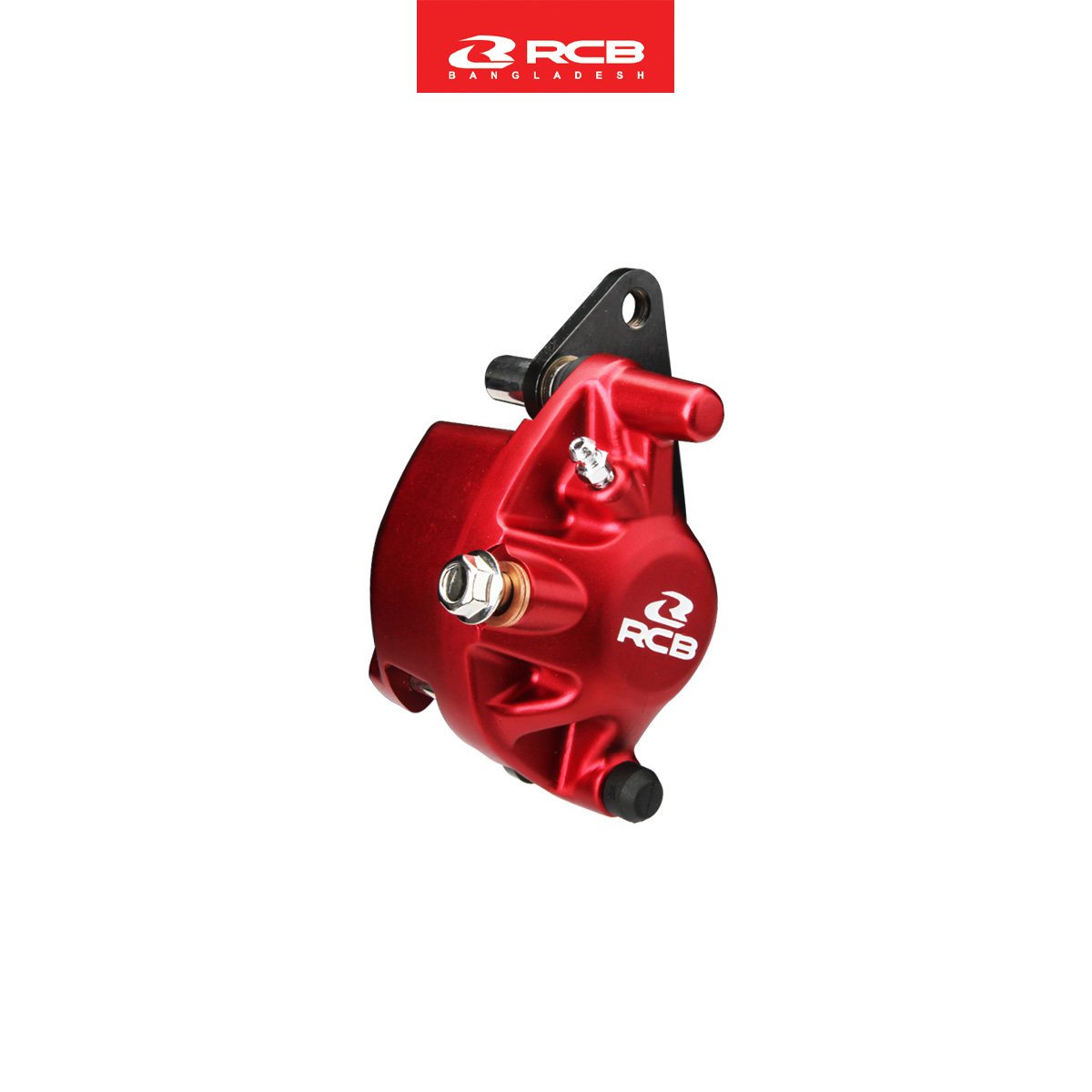

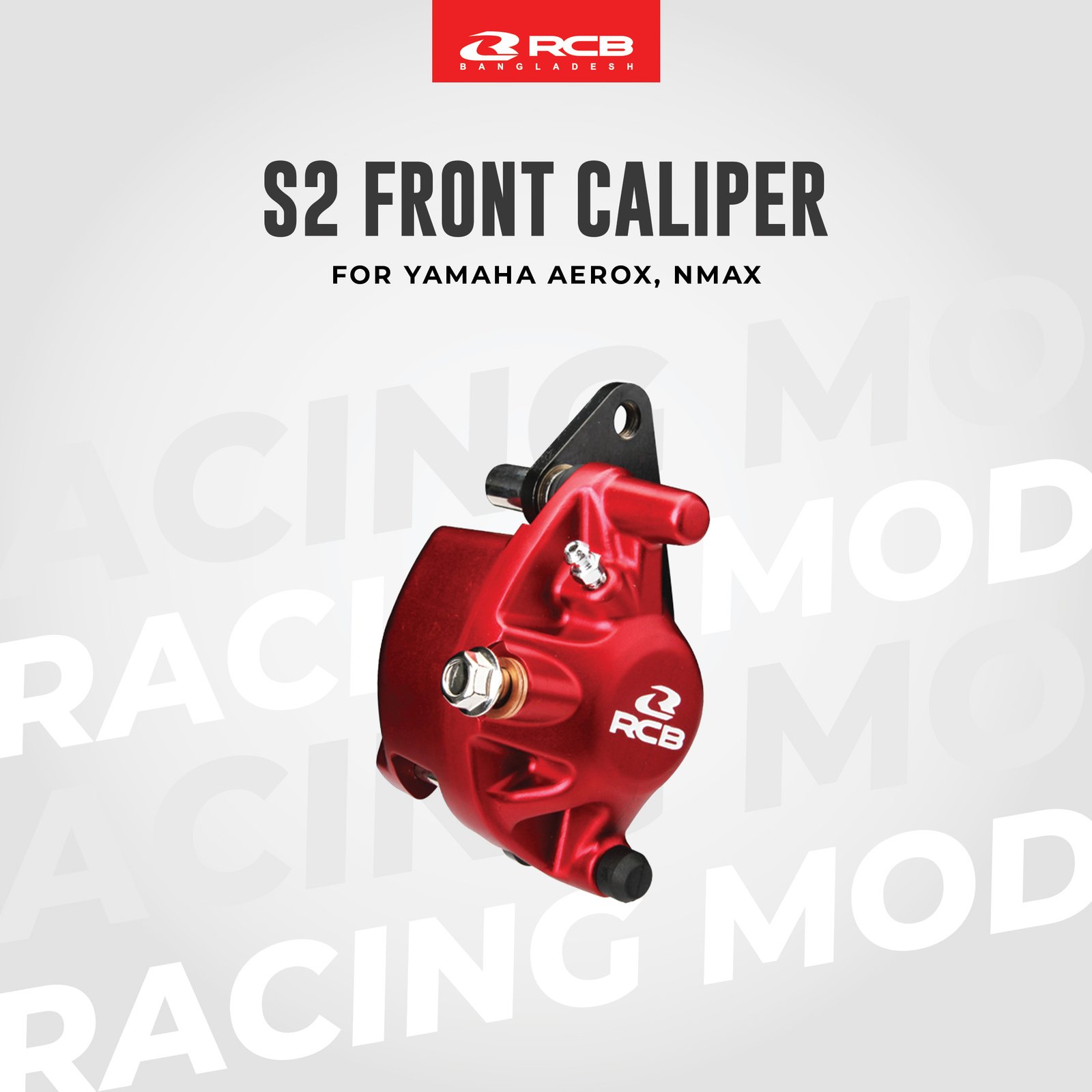

RCB S2 Series Brake Caliper is a high-performance, single-piston hydraulic upgrade precision-engineered for the Yamaha NMAX (V1/V2/V3) and Yamaha Aerox 155 (NVX155) platforms. Positioned as a direct-fit replacement for standard factory rear or front calipers, the S2 Series prioritizes rigid clamping architecture, enhanced hydraulic leverage, and excellent thermal dissipation.
By utilizing a refined Forged Monoblock body, this caliper completely eliminates structural flex under heavy lever application, giving street riders and daily commuters a highly predictable, sharp initial braking bite.
Key Features
Forged Monoblock Architecture: Machined from a single, solid piece of compressed high-tensile aluminum alloy. Eliminating the multi-piece joining bolts found on stock calipers prevents body expansion under extreme line pressure, resulting in a firm, zero-sponginess brake lever feel.
Oversized High-Flow Single Piston: Features an enlarged internal piston diameter that increases the physical hydraulic fluid contact area. This distributes pressure across the pad face more evenly than factory single-pot systems, maximizing deceleration force.
Reinforced Structural Embossing: Built with an upgraded exterior chassis shell that features structural ribbing. This design increases rigidity while shaving off unnecessary dead weight, lowering your bike’s unsprung mass for faster rear suspension tracking over bumps.

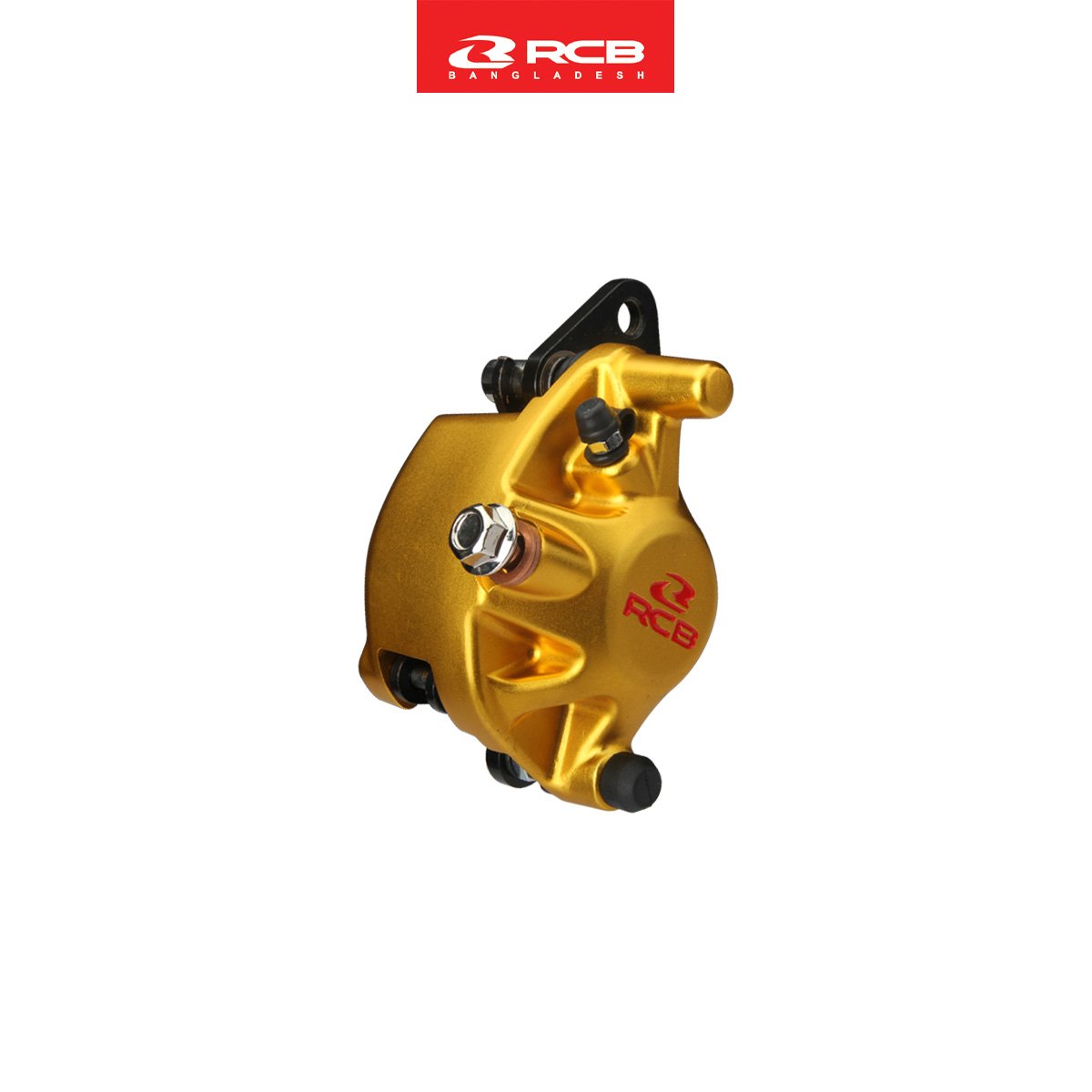

Anodized Weather Protection Coating: Coated in a deep, vibrant anodized layer (available in classic Silver, Gold, Matte Black, Blue, and Racing Red). This hard finish protects the alloy core against harsh road salts, grit, and corrosive DOT brake fluids.
Direct Plug-and-Play Fitment: Precision-matched to align perfectly with the standard factory caliper mounting brackets of the NMAX and Aerox, removing the need for custom fabrication or aftermarket adapter plates when using stock-sized rotors.
Technical Specifications
| Feature | RCB S2 Series Caliper Details |
| Series Classification | S2 Series High-Performance Monoblock Range |
| Caliper Type | 1-Piston (Single Pot) Configuration |
| Material Base | High-Grade Forged Aluminum Alloy |
| Mounting Orientation | Model Specific (Front Setup for Aerox / Front & Rear Options for NMAX) |
| Fluid Feed Inlet | Standard M10 x 1.25mm Thread Pitch |
| Compatible Brake Pad | RCB S2-Series Specific Brake Pad Compound |
| Available Colorways | Anodized Silver, Stealth Black, Gold, Red, Blue |
Model Specific Application Strategy
Because the NMAX and Aerox share similar engine architectures but completely different rear brake setups, verify your destination application before assembly:
Yamaha Aerox 155 (NVX155): The S2 Caliper installs strictly on the Front Wheel layout, replacing the stock single-pot front caliper to significantly sharpen front wheel traction braking. (The Aerox utilizes a mechanical drum brake configuration in the rear).
Yamaha NMAX 155 (V1 / V2 / V3): The S2 series is available in individual configurations for both Front and Rear disc assemblies. Upgrading both wheels balances hydraulic lever pressure across your handlebars, maximizing the tracking control of your factory anti-lock braking system (ABS).
Technical Calibration Insight: If you upgrade to an RCB S2 caliper and notice the lever pulls in unusually close to your handlebars before engaging, your master cylinder may be drawing in micro air pockets. Ensure you execute a thorough “bench bleed” at the master cylinder’s top banjo bolt to clear trapped air out of the upper line assembly.
