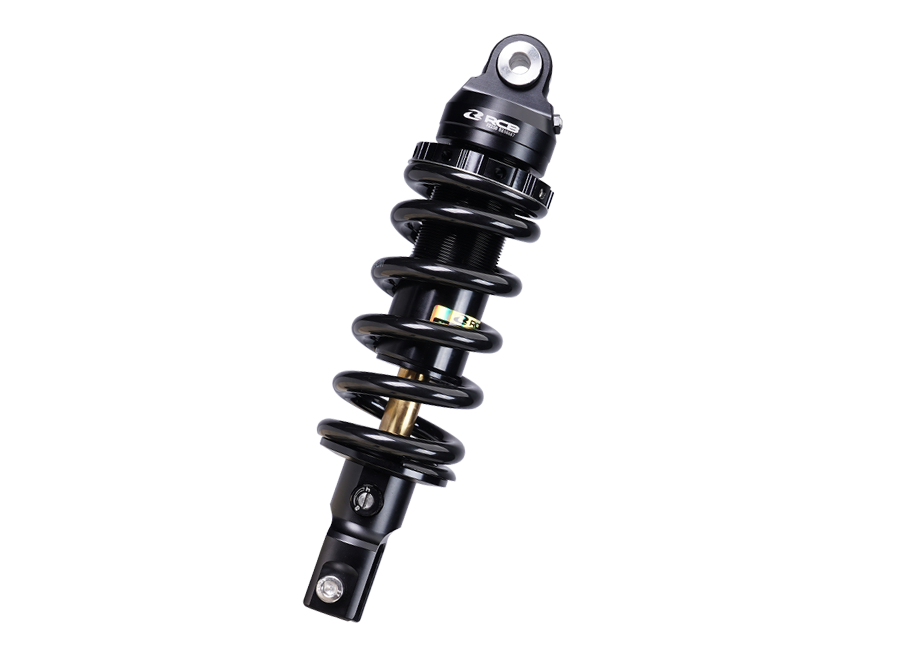

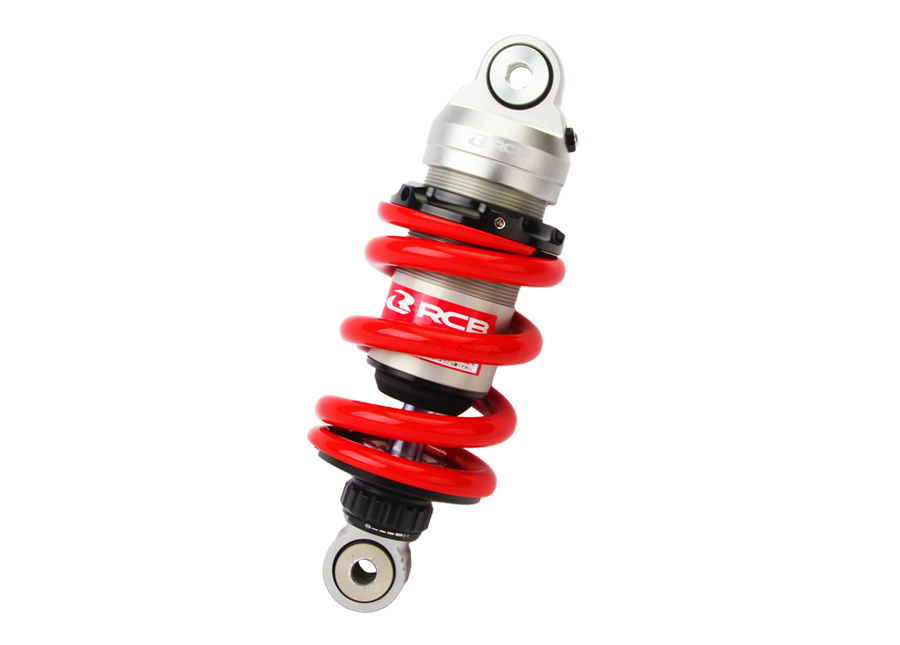

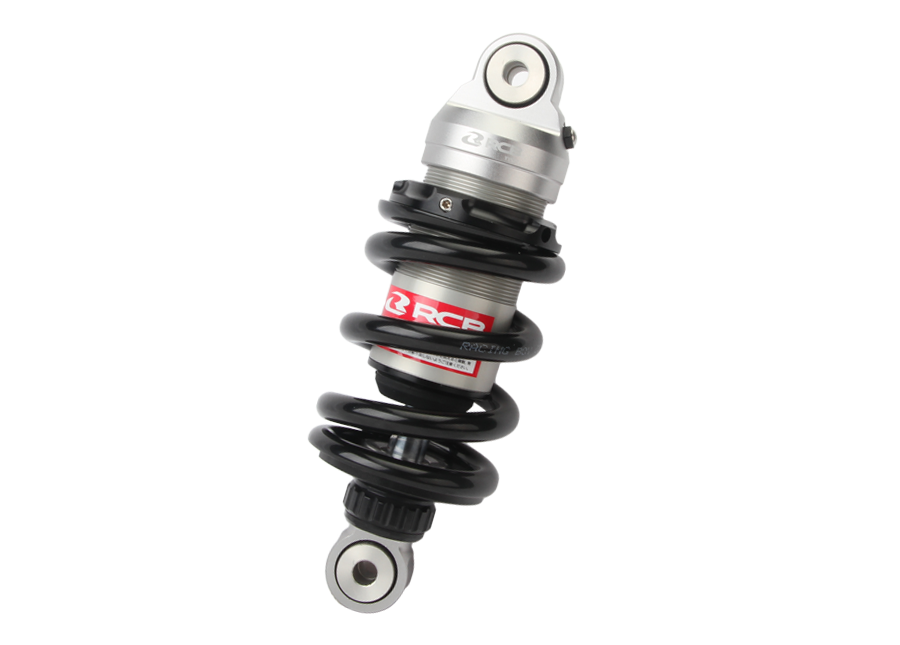

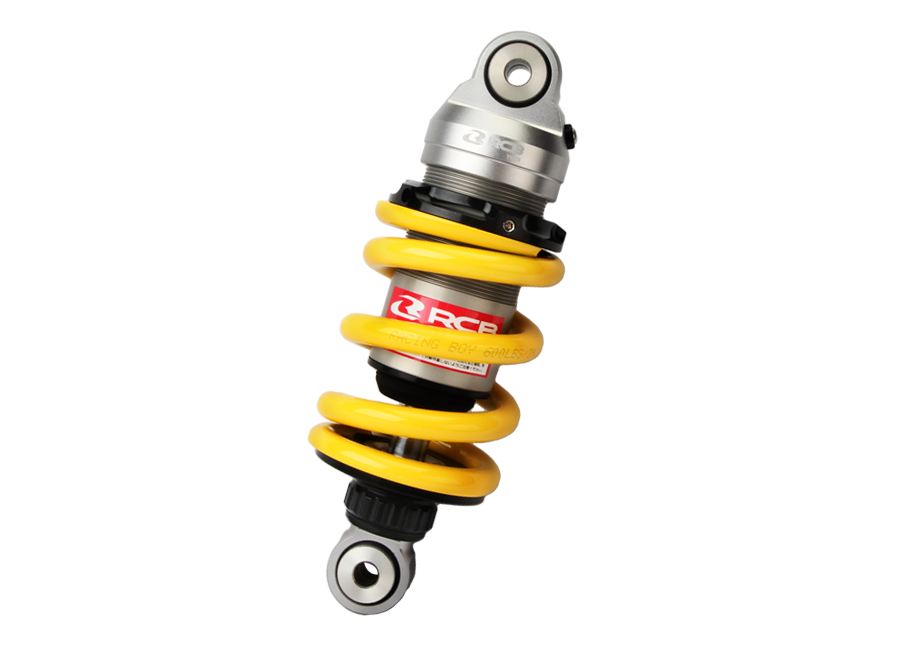

RCB S2 LINE MONOSHOCK YAMAHA R15 V4 265MM

RCB S2 Line Monoshock (265mm) is a premium aftermarket suspension upgrade designed specifically for high-performance motorcycles like the Yamaha R15 V4. The S2 Line bridges the gap between basic factory shocks and aggressive track suspensions, offering adjustable damping controls to significantly improve cornering stability, rear-end tracking, and rider comfort.

At 265mm, it matches the precise geometry requirements of the R15 platform, maintaining factory ride height while vastly upgrading handling dynamics.

Key Features

• Adjustable Spring Preload: Allows you to adjust the stiffness of the spring based on your body weight, whether you are riding solo, carrying a pillion passenger, or hauling luggage.

• Adjustable Rebound Damping: Features a clicker mechanism to control how fast the shock extends after a bump. This prevents the rear end from bouncing or feeling unsettled during high-speed cornering.

• Heavy-Duty Piston & Rod: Equipped with a large 30mm/46mm damper piston and a 14mm–16mm hardened piston rod, ensuring highly stable damping pressure under continuous mechanical load.

• Premium Monotube Design: Uses a high-pressure nitrogen gas charge separated from the oil to eliminate fluid cavitation (foaming), maintaining consistent damping performance even during aggressive street or track riding.

• Billet Aluminum Body: CNC-machined from high-grade forged alloy for exceptional structural strength, rapid heat dissipation, and a lightweight profile.

• Plug-and-Play Fitment: Designed as a direct bolt-on swap for the stock Yamaha suspension—no modifications to the swingarm or chassis are required.

Technical Specifications

Performance Advantages on YAMAHA R15 V4

1. Eliminates Corner Sway: The stock R15 shock can sometimes feel slightly soft or under-damped when pushed hard into aggressive angles. The RCB S2 line tightens the chassis feel, keeping the rear tire firmly planted through the apex.

2. Improved Braking Stability: Upgraded rear damping limits excessive weight transfer to the front wheel under hard braking, preventing rear-wheel lift and improving overall stopping composure.

3. Tailored Comfort: By dialing in the preload and rebound clickers, you can easily soften the ride for bumpy daily commutes or stiffen it up for a sharp weekend canyon or track day.

Installation Guidelines

• Professional Install Recommended: Swapping a monoshock requires safely lifting the rear of the motorcycle frame to unload the swingarm weight. A rear paddock stand alone is not enough; a frame hoist or central jack is needed.

• Set Your Sag First: Always adjust the spring preload first to set the appropriate “rider sag” (the amount the bike compresses under your weight) before fine-tuning the rebound damping clickers.

• Keep it Clean: Periodically wipe down the exposed piston rod with a clean cloth to prevent grit and road grime from wearing out the main oil seals.
