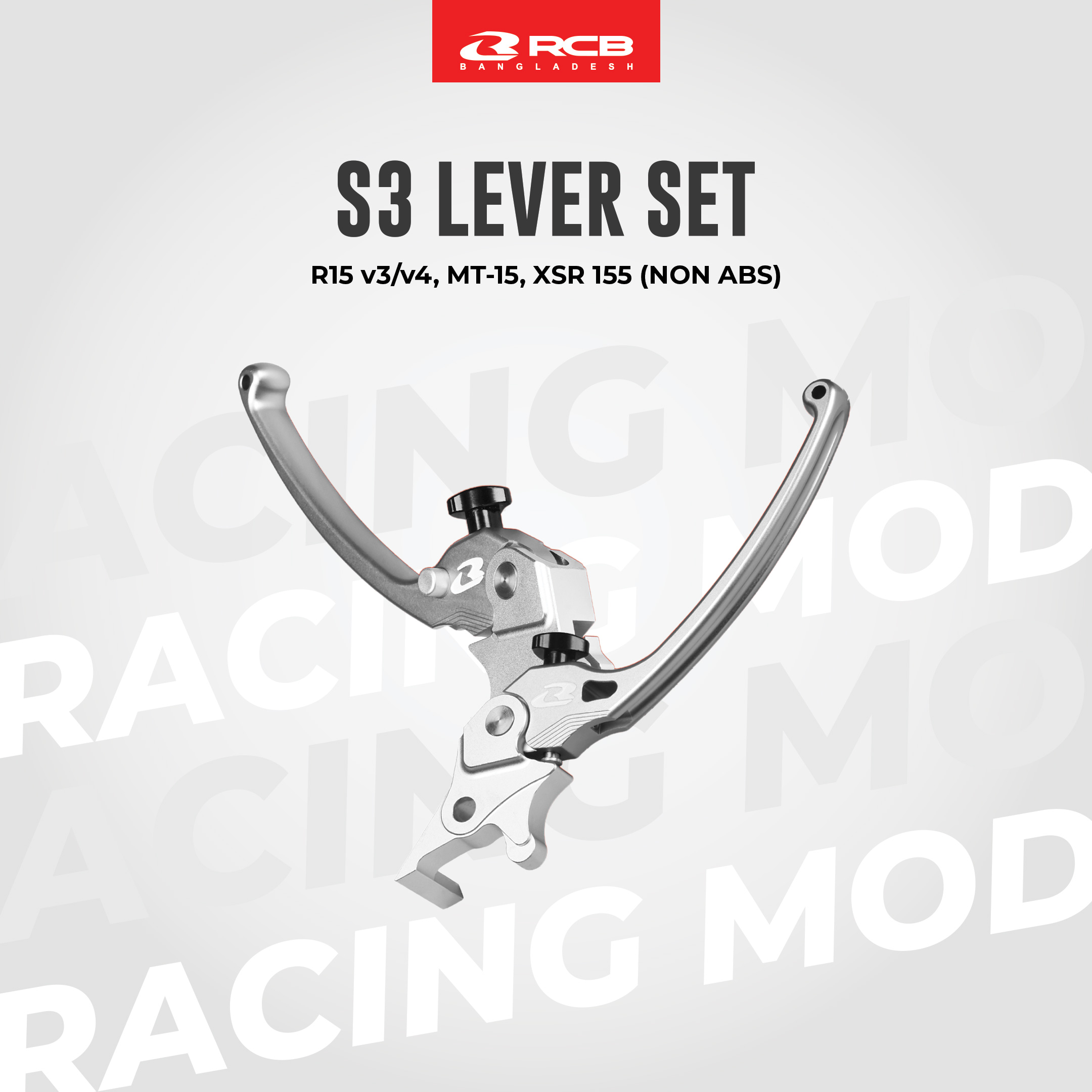

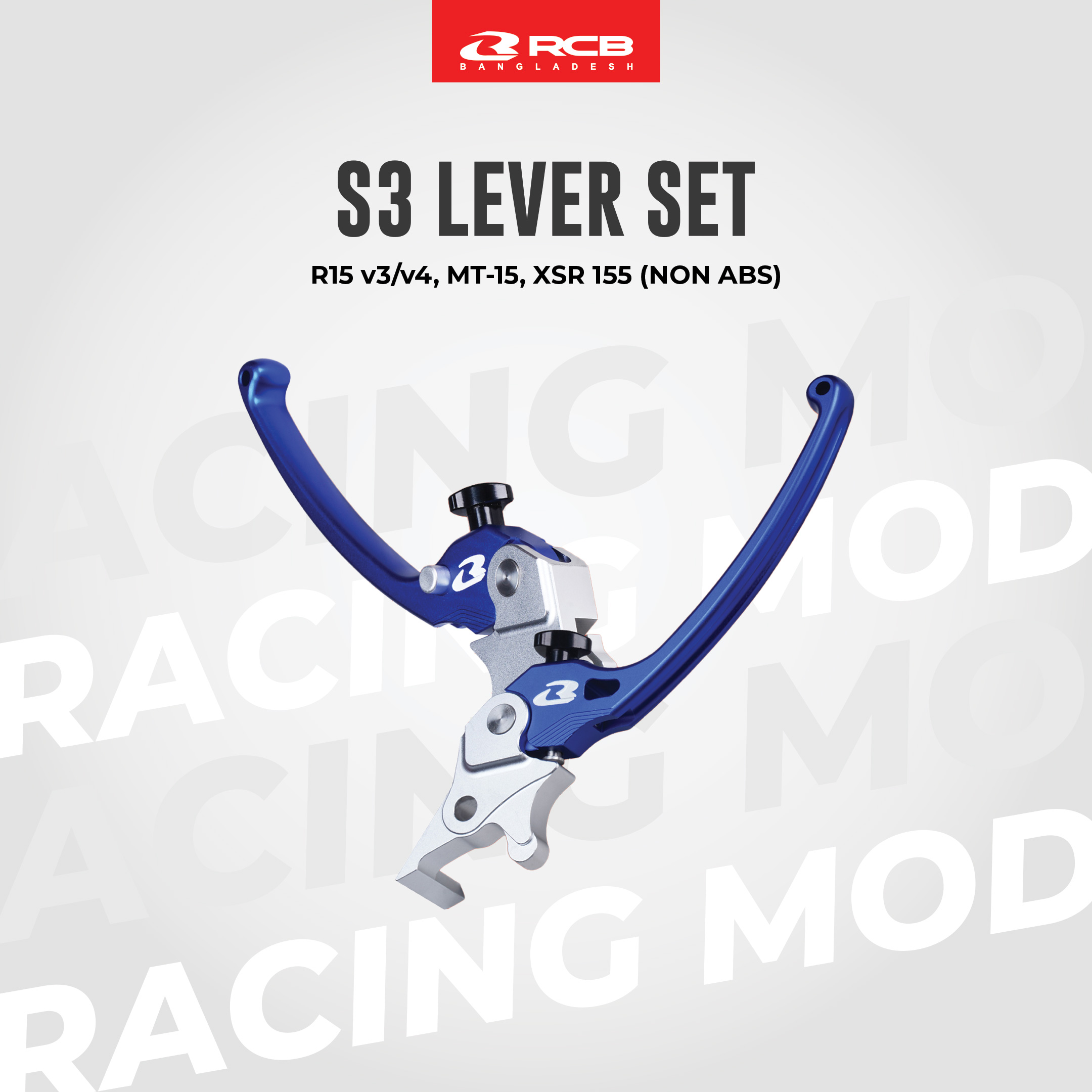

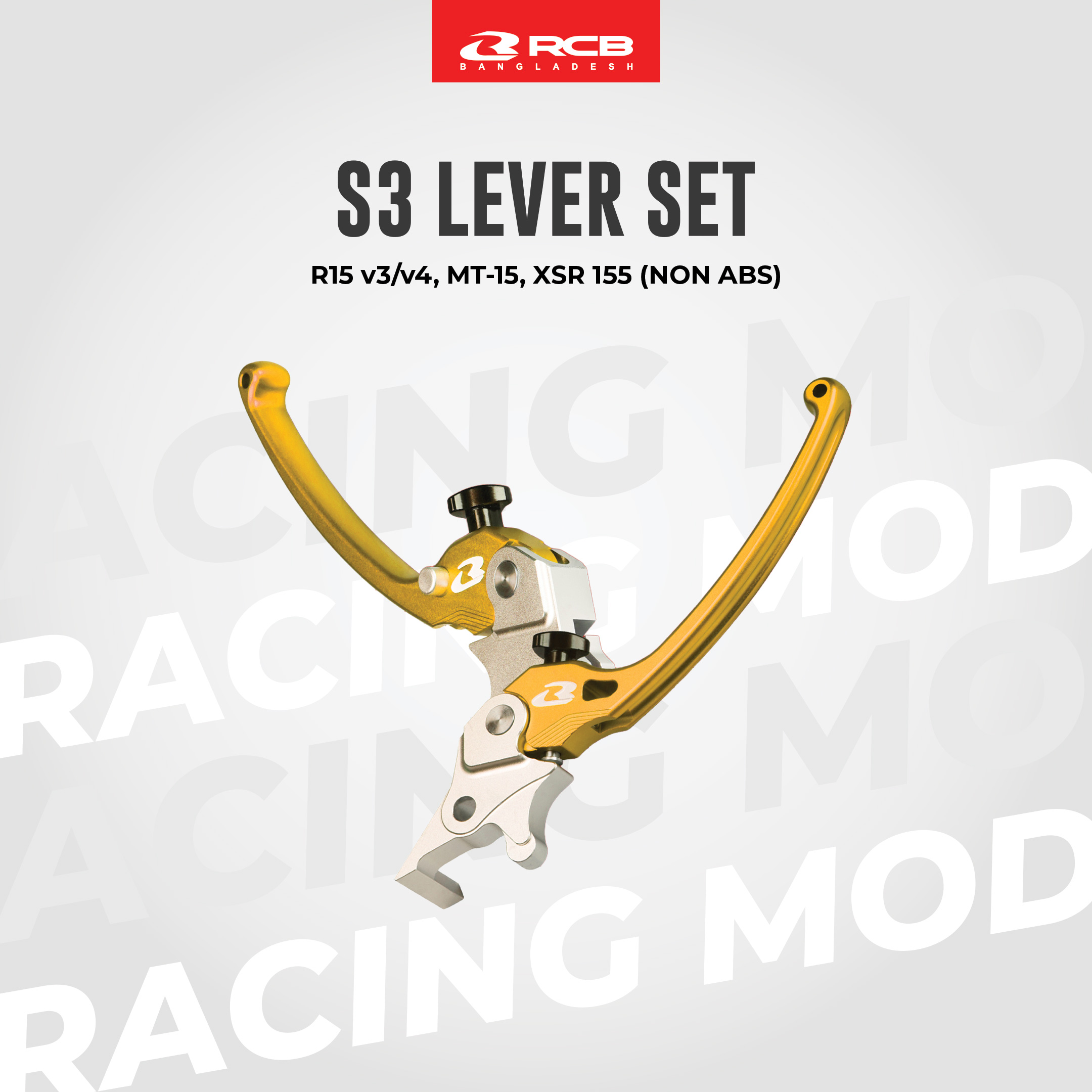

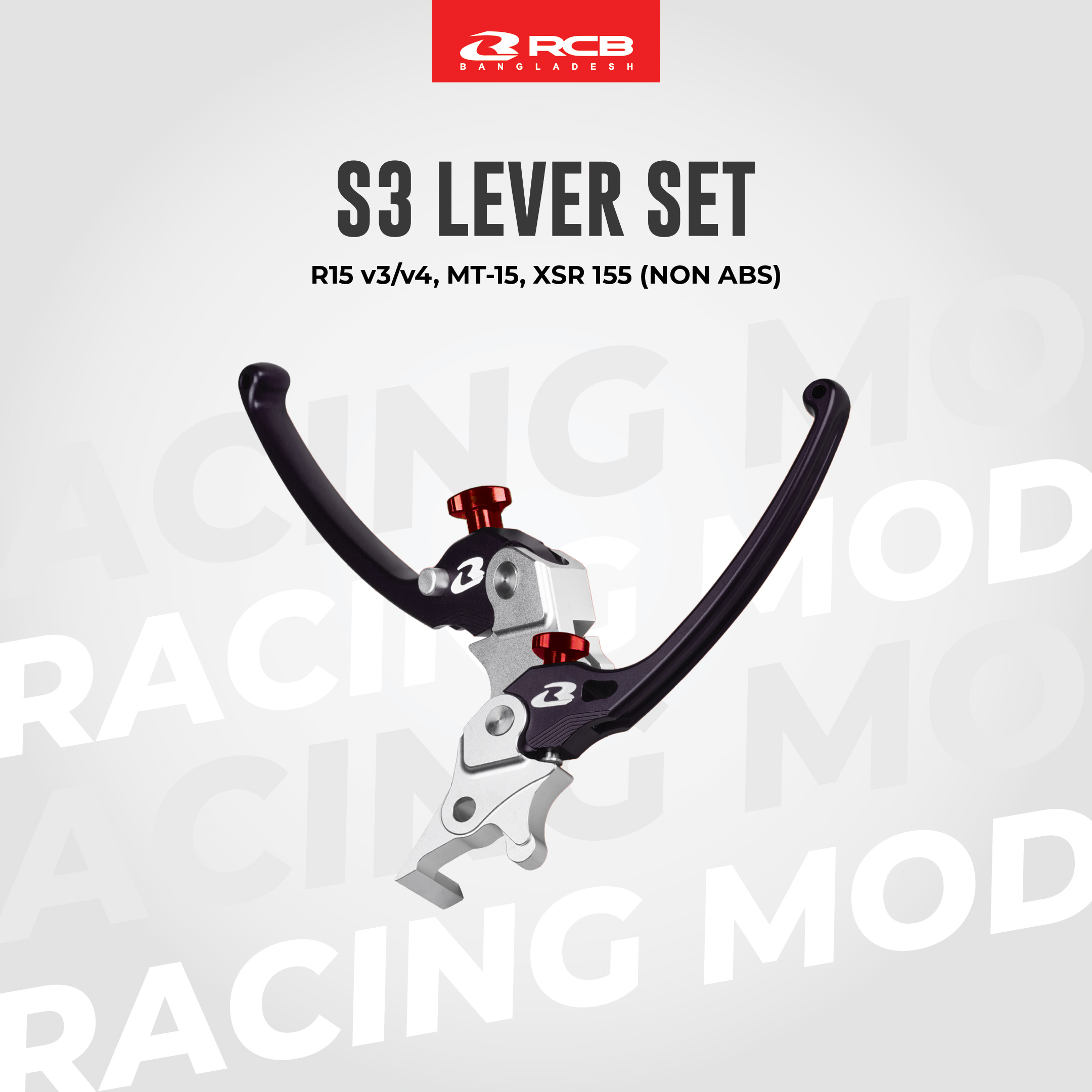

RCB S3 Alloy Lever Set is a high-precision, ergonomic handlebar upgrade engineered specifically for the Indonesian-spec (Indo) Yamaha 155cc platform without ABS. This plug-and-play kit is fully compatible with the Yamaha YZF-R15 V3, R15 V4, MT-15, and XSR 155 (Non-ABS models).
As part of RCB’s highly popular S3 Series, this matching brake and clutch lever set replaces the standard, non-adjustable factory cast levers. It gives you precise control over your controls, reduces rider hand fatigue, and brings a sharp, race-bred aesthetic to your cockpit.
Key Features
100% Precise Indonesian Non-ABS Fitment: Tailored specifically to match the actuator dimensions and master cylinder plunger depths of the Indonesian Non-ABS variants. This ensures a clean fit without tight binding or dead-play issues common with universal levers.
Precision Reach Adjuster: Both levers are equipped with an indexed click-dial adjuster. This allows you to fine-tune the distance between the lever blade and the handlebar grip to suit your hand size, ensuring maximum comfort and reducing finger strain during long rides.
High-Tensile Alloy Construction: CNC-machined from premium aluminum alloy, the S3 series offers a significant strength-to-weight advantage over stock cast levers. The result is a rigid, “no-flex” feel that provides a more direct connection to your braking and gear shifts.
Safety “Speed Vent” Design: The lever tips feature CNC-machined aerodynamic cutouts. These vents allow air to pass through at high speeds, preventing wind pressure from accidentally “dragging” the brake or slightly disengaging the clutch during high-velocity runs.
Durable Anodized Finish: Treated with a high-grade anodizing process that protects against corrosion and fading from UV exposure, ensuring your cockpit looks premium for years to come.
Technical Specifications
| Feature | RCB S3 Lever Set Details |
| Series | S3 Comfort & Control |
| Material | CNC-Machined High-Grade Aluminum Alloy |
| Model Compatibility | Yamaha R15 V3 / R15 V4 / MT-15 / XSR 155 |
| Braking System | Indonesian Non-ABS Models Only |
| Adjustment | Multi-Stage Indexed Dial |
| Included in Kit | 1x Front Brake Lever, 1x Clutch Lever |
Performance Advantage for the Yamaha 155cc Platform
The high-revving nature of Yamaha’s VVA (Variable Valve Actuation) engine calls for rapid gear changes and confident braking. The RCB S3 Lever Set complements this performance by allowing for “two-finger” modulation with ease. By adjusting the lever closer to the bar, riders can achieve faster clutch engagement and more controlled trail-braking, which is essential for spirited street riding and track days.
Installation Guidelines
Transfer Pivot Bushings: When removing your stock Yamaha levers, ensure you transfer any internal brass bushings or pivot sleeves to the RCB levers. This prevents vertical “play” or wobbling of the levers.
Grease the Pivot Bolt: Apply a thin layer of waterproof lithium grease to the pivot bolts before installation. This ensures a smooth, friction-free operation and a quick lever return.
Check Switch Actuation: After installation, verify that the brake lever correctly triggers the brake light switch and the clutch lever activates the starter safety safety-switch.
Cable Tension: Ensure your clutch cable has approximately 2mm to 3mm of freeplay at the lever pivot to prevent clutch slippage under high RPMs.
